Custom 3D Stainless Steel Backlit LED Letters | Halo-Lit Business Sign

Custom 3D Backlit LED Letters & Halo-Lit Storefront Signs

Product Overview

When standard front-lit signage does not match the luxury aesthetic of your brand, our 3D Stainless Steel Backlit Signs deliver the ultimate visual upgrade. Manufactured directly in our specialized architectural signage facility, these signs push high-intensity LED light against the wall behind the letters. This washes your building's facade or interior reception area in a soft, premium glow while keeping your brand name sharply silhouetted in the front. Highly favored by luxury boutiques, upscale restaurants, modern law firms, and corporate headquarters, this reverse-lit technology transforms your logo into a stunning piece of architectural art.

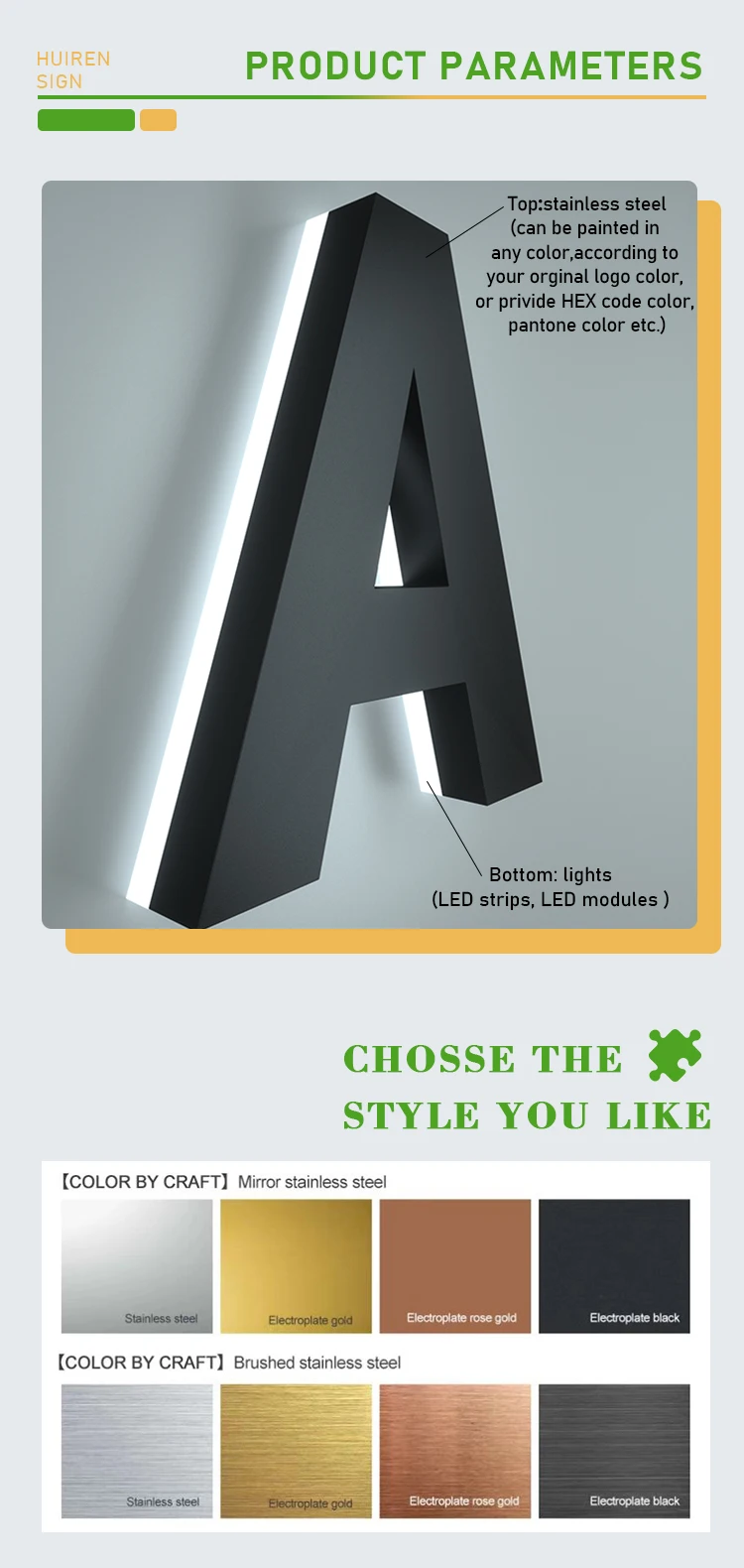

Core Technical Specifications

• Face Material: Premium Stainless Steel (Available in brushed, mirror-polished, or painted finishes; Aluminum and Brass also available).

• Backing Material: High-Transmittance Acrylic / Epoxy Resin (Optimized for flawless wall light diffusion).

• Illumination Technology: High-density, Waterproof LED Modules / LED Strips.

• Lighting Effect: Backlit / Reverse-Lit / Halo-Lit (Solid metal front face, illuminated backing).

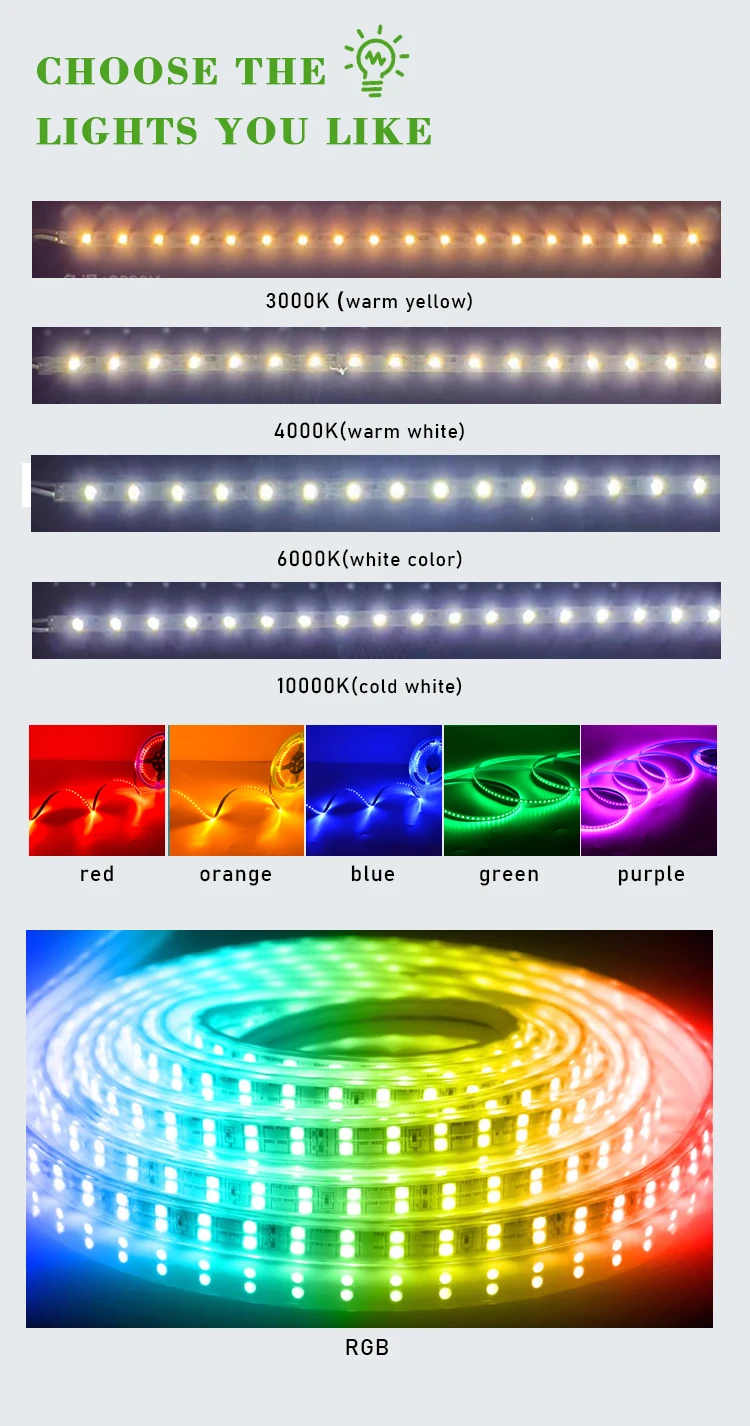

• Emitting Colors: Warm White (Highly popular for gold/brass faces), Cold White, Orange, Yellow, Blue, Green, Purple, RGB, and Custom.

• Power Supply: Input AC 110V-240V converting to safe Output DC 12V (Plug/Adaptor/Transformer included).

• Working Lifetime: > 50,000 Hours (Energy conservation design).

• Operating Environment: 100% Weatherproof; suitable for both indoor (reception walls) and permanent outdoor (building facades) applications.

• Installation Method: Wall Mounted via Back Screw Bolts.

• Certifications: CE, UL, RoHS.

• Warranty: 1-Year Factory Warranty.

Factory Manufacturing Excellence

• Premium Metal Fabrication: Using advanced CNC and laser-cutting machinery, we precision-cut your specific typography or vector logo out of solid stainless steel. This ensures perfectly smooth edges and structural integrity that resists denting and warping over time.

• Flawless Halo Diffusion: The secret to a high-end backlit sign is the precise calculation of depth. Our engineers ensure the exact spacing between the internal LEDs and the acrylic diffuser to guarantee a smooth, continuous halo of light—completely eliminating harsh LED "hot spots" against your wall.

• Commercial-Grade Weatherproofing: Engineered for true exterior longevity. We utilize strictly waterproof LED modules completely sealed within the metal housing. Your backlit exterior sign will effortlessly withstand heavy rain, wind, and temperature fluctuations without electrical failure.

• Certified Safety & Efficiency: Backed by CE, UL, and RoHS certifications, our signs operate on a safe 12V DC low-voltage system. They are incredibly safe to touch and significantly reduce commercial electricity consumption compared to traditional neon or fluorescent lighting.

FAQ: Custom 3D Stainless Steel Backlit LED Letters

What exactly is a backlit or "halo-lit" channel letter?

A backlit (or reverse-lit) channel letter features a solid, opaque front face—usually made of stainless steel—and a clear or frosted acrylic back. The LED lights inside are aimed backward. When mounted slightly away from the wall using standoff bolts, the light reflects off the wall surface, creating a beautiful glowing "halo" effect around the dark silhouette of the letter.

Are these stainless steel backlit signs fully waterproof for outdoor use?

Yes, absolutely. Our custom backlit letters are heavily engineered for permanent exterior commercial use. The housings are constructed from rust-resistant stainless steel, and the internal lighting utilizes fully sealed, IP-rated waterproof LED modules. They are built to endure harsh rain and sun exposure safely.

What is included with my custom sign order?

Every custom order is shipped as a complete, ready-to-install kit. You will receive your custom 3D metal letters, the appropriate AC to DC 12V power transformer/adaptor for your region, all necessary back-screw mounting hardware, and a precise 1:1 paper fixing template to ensure perfect wall alignment.

How do I install these letters to get the floating halo effect?

Installation is straightforward for any contractor. You tape the included 1:1 paper template to your wall and drill holes where marked. The back of each metal letter features threaded holes; you insert the included standoff bolts, push the electrical wires through the wall to the transformer, and secure the letters. The standoff bolts automatically create the perfect gap between the letter and the wall to allow the light to escape and form the halo.
